/01
View product details ↗Outline & edge inspection

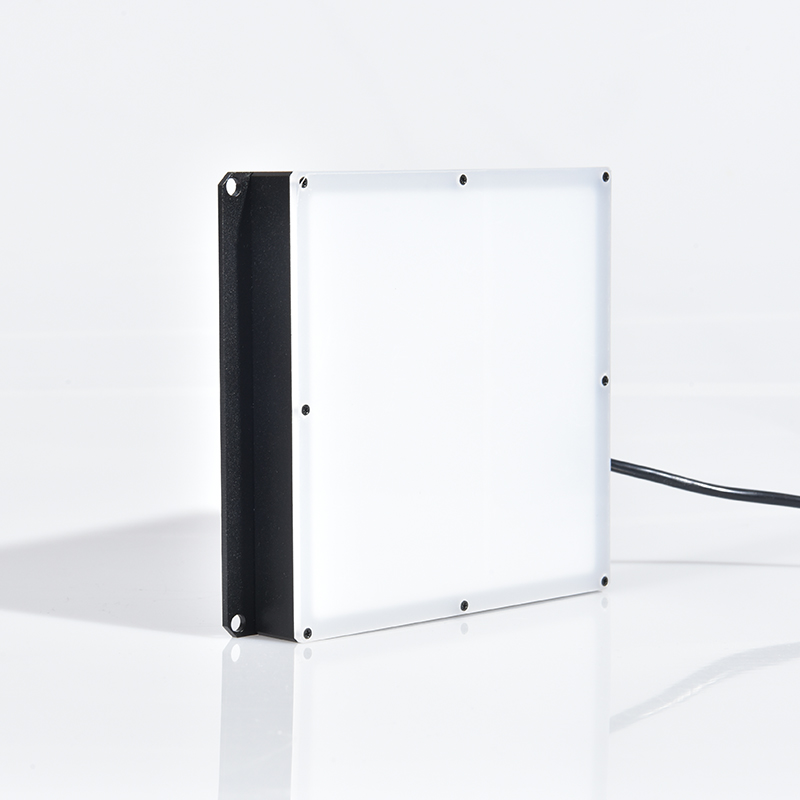

Backlights
Explore transmitted lighting for silhouette and edge inspection.
DISCUSS YOUR REQUIREMENTS
Explore backlights↗Illuminated area · Working distance
Machine vision illumination
Vision & motion.
Working together.
Vision lighting, manual stages and hollow rotary platforms. Explore lighting and positioning components for your inspection setup.
Browse the collection↗HERUI /LIGHTING SYSTEMS
01 / THE COLLECTIONThree ways
Three ways
to see more.
Three lighting families. A starting point for your application discussion.
View product details ↗/02
View product details ↗Reflective surface inspection

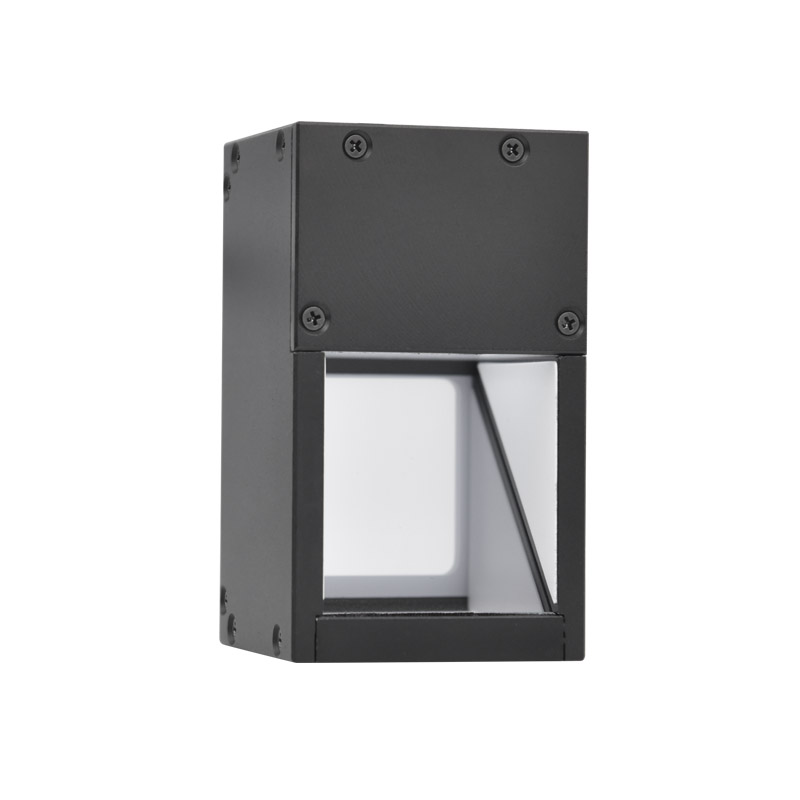

Coaxial lights
Explore on-axis illumination for reflective surface inspection.
DISCUSS YOUR REQUIREMENTS
Explore coaxial lights↗Surface finish · Camera arrangement
/03
View product details ↗Application-led selection

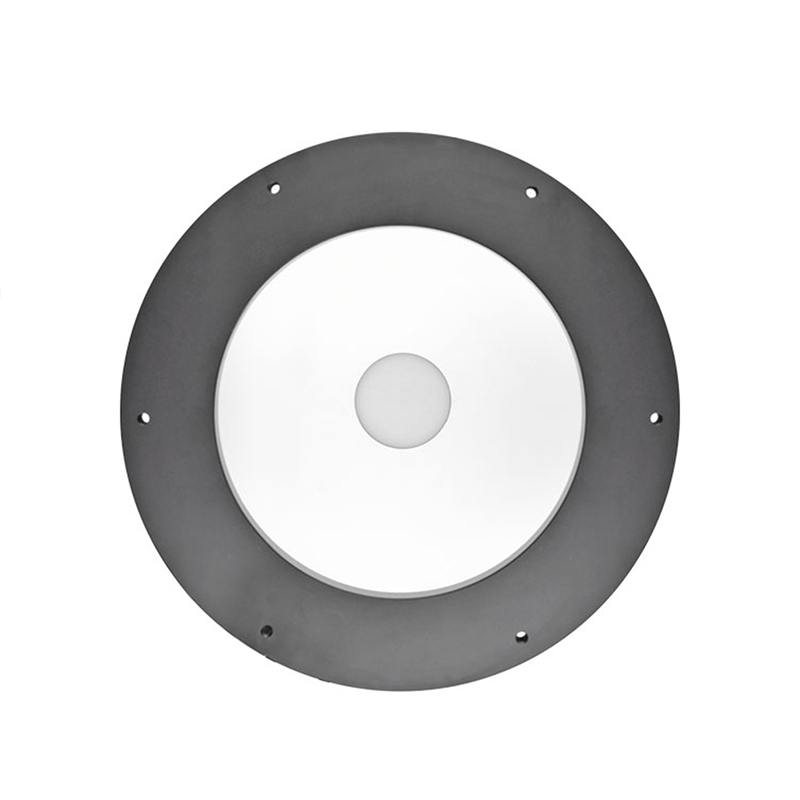

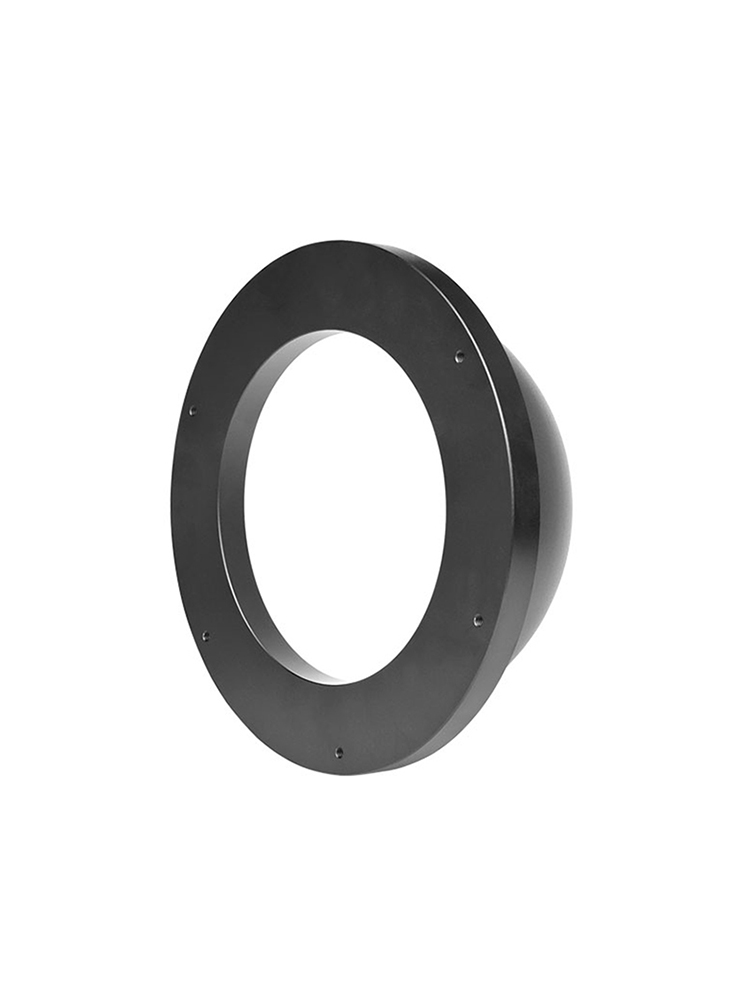

Integrating sphere lights
Explore our integrating sphere lighting family.
DISCUSS YOUR REQUIREMENTS
Explore sphere lights↗Inspection target · Mounting space
HERUI / POSITIONING
Precision positioning
Vision lighting, manual stages and hollow rotary platforms. Explore lighting and positioning components for your inspection setup.
Manual stages
Micrometer-driven crossed-roller stages for manual X or XY alignment.
X-axis manual stage
RLX40-C
Compact X-axis positioning with a micrometer head and crossed-roller guide.
View model ↗
XY manual stage
RLY40-C
Stacked X and Y stages provide two-direction manual alignment on a 40 × 40 mm table.
View model ↗Hollow rotary platforms
Hollow rotary platforms with crossed-roller bearings. Compare compact TS60 and higher-load TS200.
Compact hollow rotary platform
TS60
A compact 0.6 kg hollow rotary platform with stepper and servo motor interface options.
View model ↗
Higher-load hollow rotary platform
TS200
A larger hollow rotary platform with a catalogue permissible axial load of 4000 N.
View model ↗HERUI / LED
LED emitter parameters
Reference: 2025 HERUI manual, slide 2. These are LED emitter ranges; color availability depends on the selected light model.
| Color code | Wavelength | Color temperature |
|---|---|---|
| White (W) | — | 5000–10000 K |
| Red (R) | 620–630 nm | N/A |
| Green (G) | 520–530 nm | N/A |
| Blue (B) | 465–475 nm | N/A |
| Infrared (IR) | 850–940 nm | N/A |
| Ultraviolet (UV) | 365–405 nm | N/A |
Connector reference: SMR-03-B. Confirm the pin assignment when enquiring.
02 / APPLICATION GUIDEStart with
Start with
the inspection.
Illustrative use cases to discuss. Final suitability depends on samples and testing.
Find your solution↗/01Edges & dimensions
Start with the outline. Discuss part geometry, field of view and the features you need to measure.
Discuss your project ↗/02Surfaces & fine details
Start with the material. Share surface finish and the defects your vision system needs to reveal.
Discuss your project ↗/03Presence & identification
Start with the target. Define the markings, components or assembly features to inspect.
Discuss your project ↗HERUI / 2022
Made in Zhongshan.
Founded in 2022, Zhongshan Herui photoelectric Co., Ltd develops its optoelectronics business in Zhongshan, Guangdong, China. Our product range includes backlights, coaxial lights and integrating sphere lights.
Our facility uses SMT pick-and-place equipment for PCB assembly. Share your inspection requirements with us to discuss lighting selection and your next project.
Our product selection also includes manual positioning stages and hollow rotary platforms. Share the required axes, travel, load and mounting space for selection.
Factory address
Room 423, 4th Floor, Building 10, Jinhui Industrial Park, No. 27 Xingye Road, Torch Development Zone, Zhongshan, Guangdong, China
03 / LET’S TALKYour next
Your next
clearer view.
Tell us about your application and the product you are considering.
WHAT TO PREPARE
- Sample images
- Inspection objective
- Working distance & mounting space
Submit your enquiry to HERUI. We use your contact details and requirements to respond by email.
