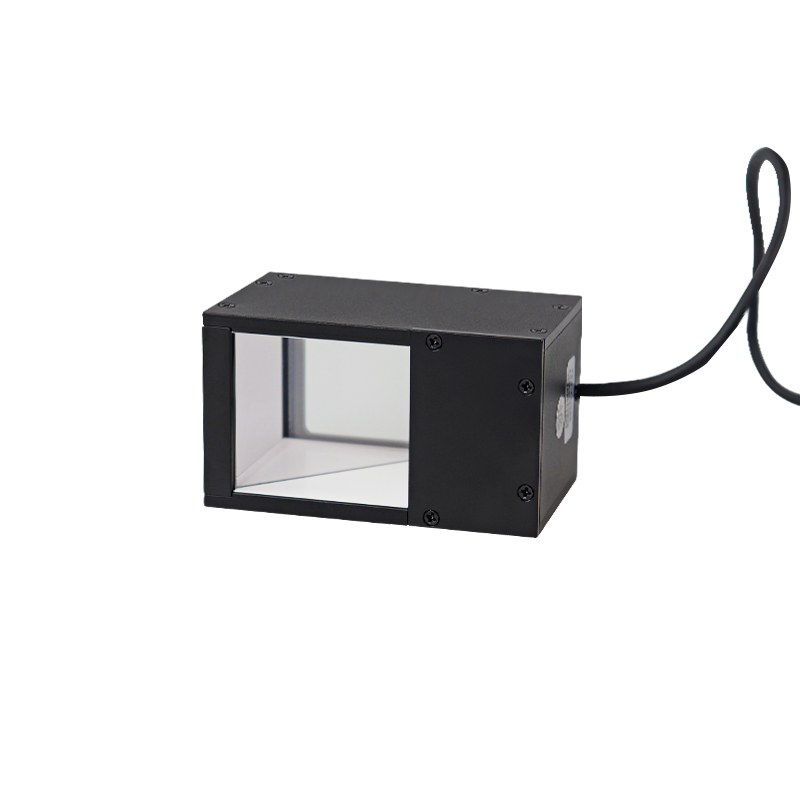

Coaxial lights
A beam splitter directs light along the camera axis toward the object for reflective surface inspection.
Discuss this product ↗Dimensional drawings are available on inquiry.
Request dimensional drawings ↗
Product views may show different configurations. Confirm the model and specifications before ordering.

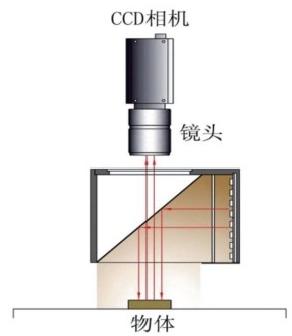

Lighting principle
Model code guide
- HR
- Brand
- CO
- Light family
- 10050
- Illuminated area
- R
- Color code
Illustrative code from the manual; confirm the complete order code when enquiring.
R: red · G: green · B: blue · W: white · IR: infrared · UV: ultraviolet
Imaging examples
Examples reproduced from the manual. Actual results depend on the sample and inspection setup.
Specifications and selection
Dimensions are in mm; power is in W. White, blue and green share one power column. Confirm any flagged values and the dimensional drawing before ordering.
No matching models
Coaxial lights
| Model | Outer diameter (mm) | Inner diameter (mm) | Height (mm) | Red light power | White / blue / green power | Data notes | Manual reference |
|---|---|---|---|---|---|---|---|
| HR-C013-Z | 32 | 28 | 23 | 0.5W | 0.4W | — | P28 / 37 |
| HR-C018 | 59 | 28 | 24.8 | 1.3W | 1.7W | — | P28 / 37 |
| HR-C025 | 61 | 33 | 31 | 1.5W | 1.9W | — | P28 / 37 |
| HR-C025-Z | 61 | 33 | 33 | 1.5W | Not provided | Missing power value | P28 / 37 |
| HR-C030 | 66 | 38 | 36 | 0.5W | 1.6W | — | P28 / 37 |
| HR-C040 | 80 | 46 | 47 | 1.3W | 2W | — | P28 / 37 |
| HR-C050 | 86 | 61 | 56 | 1.8W | 2.4W | — | P28 / 37 |
| D8S-C060 | 94 | 68 | 66 | 2.5W | 7.2W | Model label differs between table and drawing | P28 / 37 |
| HR-C070 | 100 | 78 | 77.5 | 5W | 9.6W | — | P28 / 37 |
| HR-CO80 | 116 | 89 | 86 | 8.5W | 11W | — | P28 / 37 |
| HR-G090 | 125 | 98 | 99 | 9.8W | 2W | Model label differs between table and drawing | P28 / 37 |
| HR-CO100 | 136 | 109 | 06 | 12W | 14W | Check dimension | P28 / 37 |
| HR-CO120 | 155 | 128 | 129 | 17.2W | 21.5W | — | P28 / 37 |
| HR-C0130 | 164 | 139 | 136 | 19.9W | 24.8W | — | P28 / 37 |
| HR-C0150 | 184 | 159 | 156 | 23.7W | 29.3W | — | P28 / 37 |
| HR-C0170 | 204 | 179 | 176 | 30.3W | 35.8W | — | P28 / 37 |
| HR-C050100 | 116 | 86 | 56 | 8.6W | 15W | — | P28 / 37 |
| HR-C050130 | 144 | 86 | 56 | 9W | 9W | — | P28 / 37 |
| HR-C075120 | 129 | 105 | 80 | 10.5W | 1W | — | P28 / 37 |
| HR-C080180 | 188 | 112 | 84 | 9.8W | 6W | — | P28 / 37 |
| HR-C0100200 | 136 | 209 | 106 | 10.6W | 17W | — | P28 / 37 |
| HR-C0200250 | 260 | 238 | 206 | 25.2W | 31W | — | P28 / 37 |
| HR-C0250260 | 300 | 276 | 268 | 26W | 33W | — | P28 / 37 |
LED emitter parameters
Reference: 2025 HERUI manual, slide 2. These are LED emitter ranges; color availability depends on the selected light model.
| Color code | Wavelength | Color temperature |
|---|---|---|
| White (W) | — | 5000–10000 K |
| Red (R) | 620–630 nm | N/A |
| Green (G) | 520–530 nm | N/A |
| Blue (B) | 465–475 nm | N/A |
| Infrared (IR) | 850–940 nm | N/A |
| Ultraviolet (UV) | 365–405 nm | N/A |
Connector reference: SMR-03-B. Confirm the pin assignment when enquiring.
